MJPB Aerial electrical pre-insulated joint cable splice sleeves

MJPB Aerial electrical pre-insulated joint cable splice sleeves

MJPB Aerial electrical pre-insulated joint cable splice sleeves is designed for the connection of copper or aluminium stranded core overhead insulated conductors with traction or with no mechanical load.

It is used for the installation, repair or modification of low voltage service lines. The junction car be established between two conductors of equal or unequal sections. All combinations of sections are possible.

The section of the cables ranges goes from 6 up to 35mm2.

Material：Al-99.5％

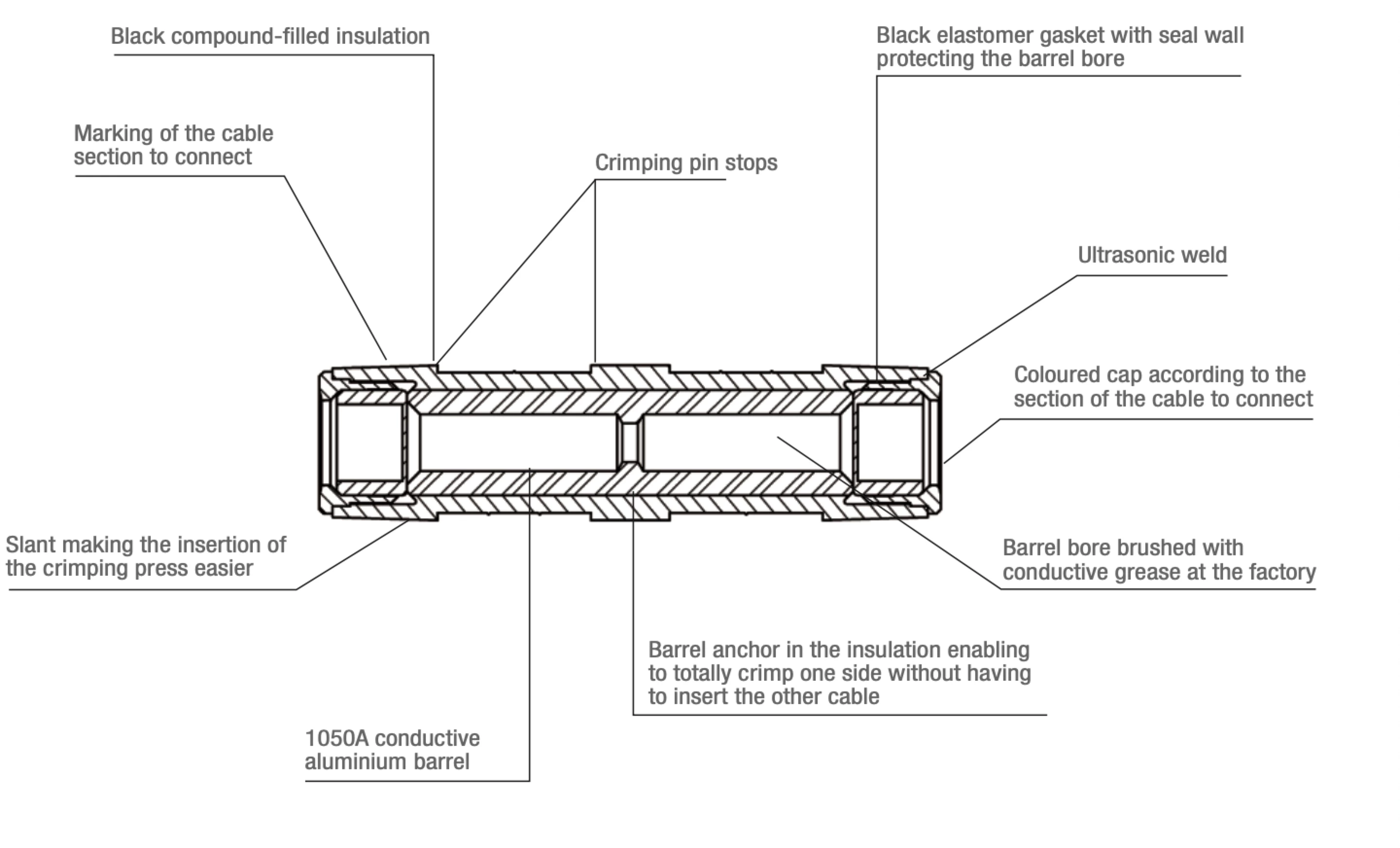

Product property：MJPB is designed to connect the insulated cable(include ABC cable) .It is in accordance with NFC33-021 .The sleeve is without tension .

And its cap can prevent the water into the barrel .It is colored differently to distinguish the cable size .

Marked with type ,cable size ,die size ,inner cable length and number of crimping .
