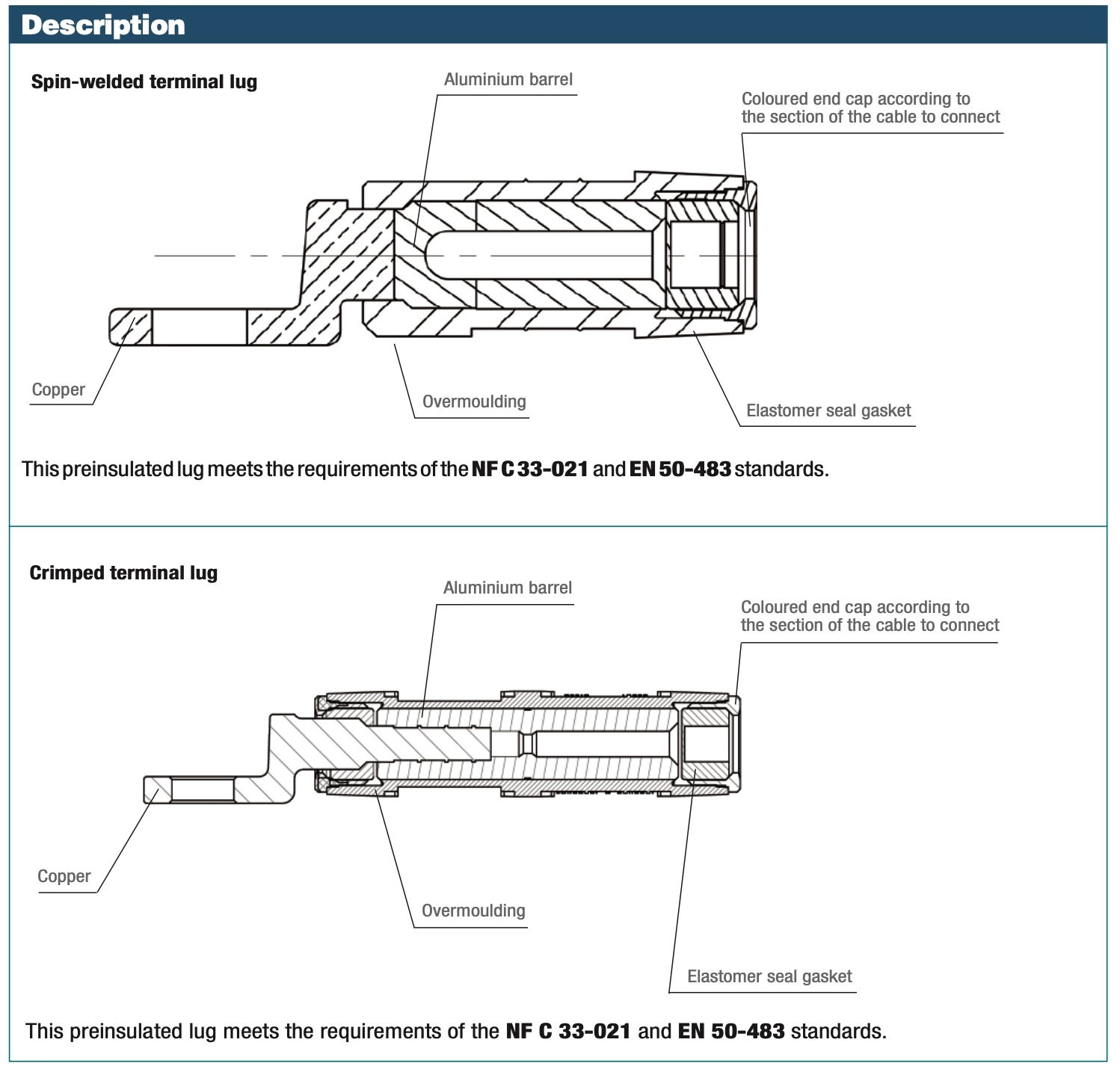

Material：E-Cu;Al-99.6％
Product property：CPTAU is designed to connect the insulated cable(include ABC cable) .It is in accordance with NFC33-021 .
The waterproof cap can prevent the water into the barrel .It is colored differently to distinguish the cable sizes .
Marked with type ,cable size ,die size ,inner cable length and number of crimping .
|
Model |
Dimensions (mm2) |
Length (mm) |
||
|
C |
B |
φ |
L |
|
|
CPTAU 16-10 |
16 |
20 |
10.5 |
73 |
|
CPTAU 25-12 |
20 |
24 |
13 |
98.5 |
|
CPTAU35-12 |
20 |
24 |
13 |
98.5 |
|
CPTAU 50-12 |
20 |
24 |
13 |
98.5 |
|
CPTAU54.6-12 |
20 |
24 |
13 |
98.5 |
|
CPTAU 70-12 |
20 |
24 |
13 |
98.5 |
|
CPTAU 95-12 |
20 |
24 |
13 |
98.5 |
