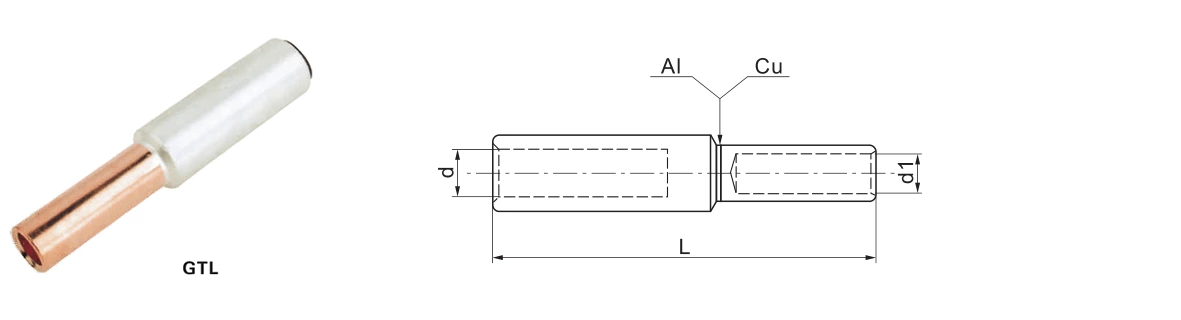

GTL Bimetal Aluminium Copper Cable Connector PIN Type

Code:GTL Cable Size: Description:
Contact Now

GTL Bimetal Aluminium Copper Cable Connector PIN Type

Material:E-CU A1-99.5%
Surface treatment:Bright
Product property:Due to the coupling effect when aluminium comes in contact with copper corrosion will happen in a short time currently the best solution os to use aluminium-copper bimetal connectors,A bimetal link should be used for joint the friction welding is well done and its aluminium barrel capped is filled with joint compaound to avoid oxidization

Type

Dimensions(mm)

L

d

d1

GTL-AL25/CU16

70

6.8

5.5

GTL-AL35/CU16

76

8

5.5

GTL-AL35/CU25

82

8

7

GTL-AL50/CU25

85

9.8

7

GTL-AL50/CU35

90

9.8

8.2

GTL-AL70/CU35

95

11.2

8.2

GTL-AL70/CU50

100

11.2

10

GTL-AL95/CU50

105

13.2

10

GTL-AL95/CU70

110

13.2

11.5

GTL-AL120/CU70

116

14.7

11.5

GTL-AL120/CU95

118

14.7

13.5

GTL-AL150/CU95

120

16.3

13.5

GTL-AL150/CU120

122

16.3

15.5

GTL-AL185/CU120

128

18.3

15.5

GTL-AL185/CU150

130

18.3

17

GTL-AL240/CU150

132

21

17

GTL-AL240/CU185

135

21

19

GTL-AL240/CU240

140

121

21.5

GTL-AL300/CU240

145

23.3

21.5

GTL-AL300/CU300

150

23.3

24.5
