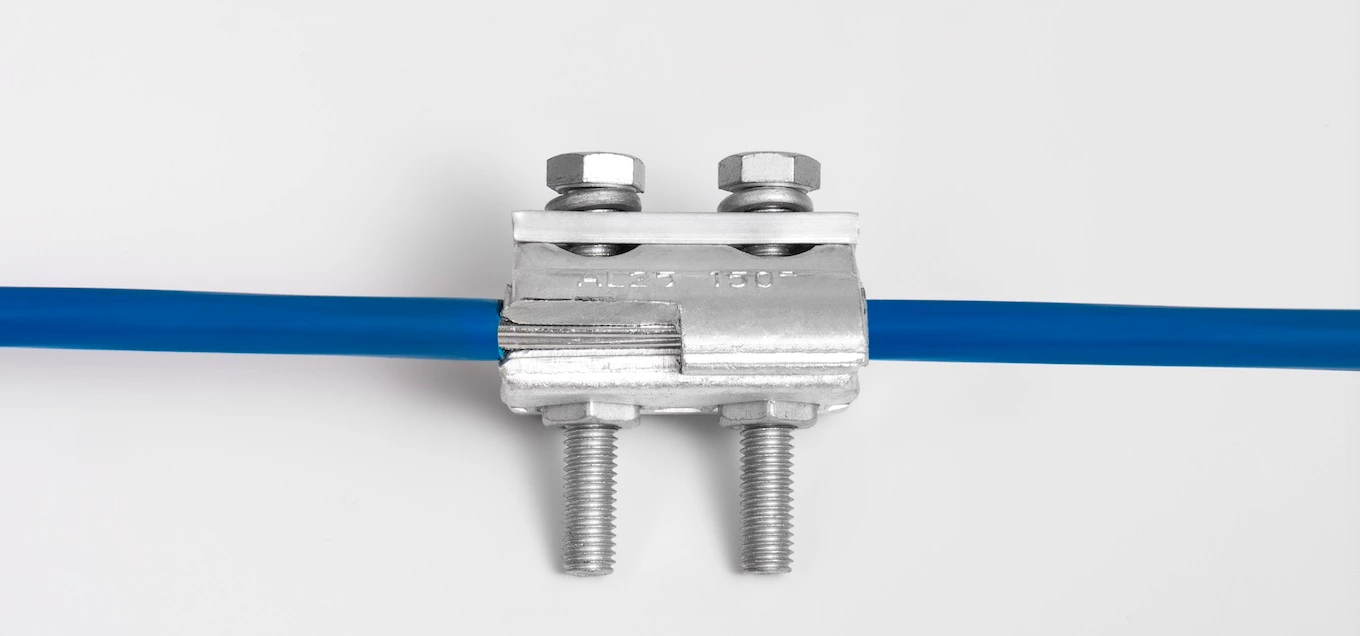

Description:APG Aluminum Parallel Groove Clamp is used for the Non-bearing connection and offset of aluminum stranded wire, aluminum stranded wire, it's used with insulating cover for the effect of protective and insulation.
Exceed requirements according to VDE 0210 and VDE 0212
Pressure pad ensuring uniform pressure along the clamp
Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact
Connector bodies made of corrosion resistant, high strength aluminium alloy AlMgSi1F32
Bolts and nuts made of hot dip galvanized steel 8.8
|
Model |
Conductor Cross-section (mm2) |
Bolts |
|
APG-A1 |
Al 16-70 |
1×M8×40 |
|
APG-A2 |
Al 25-150 |
1×M8×45 |
|
APG-B1 |
Al 16-35 |
2×M6×35 |
|
APG-B2 |
Al 16-70 |
2×M8×45 |
|
APG-B3 |
Al 16-150 |
2×M8×50 |
|
APG-B4 |
Al 25-185 |
2×M10×60 |
|
APG-C1 |
Al 16-70 |
3×M8×45 |
|
APG-C2 |
Al 16-150 |
3×M8×50 |
|
APG-C3 |
Al 25-240 |
3×M10×60 |
|
APG-C4 |
Al 35-300 |
3×M10×70 |
