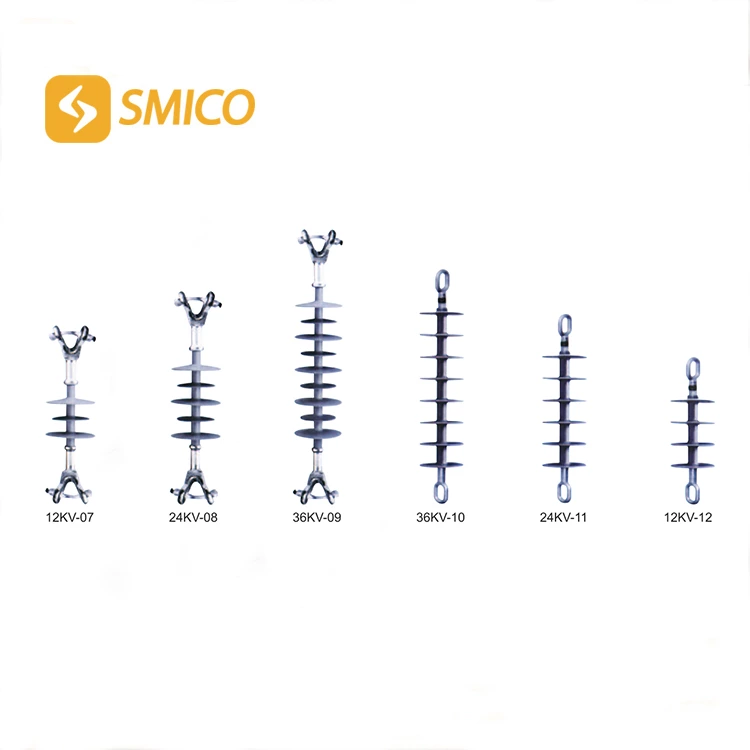

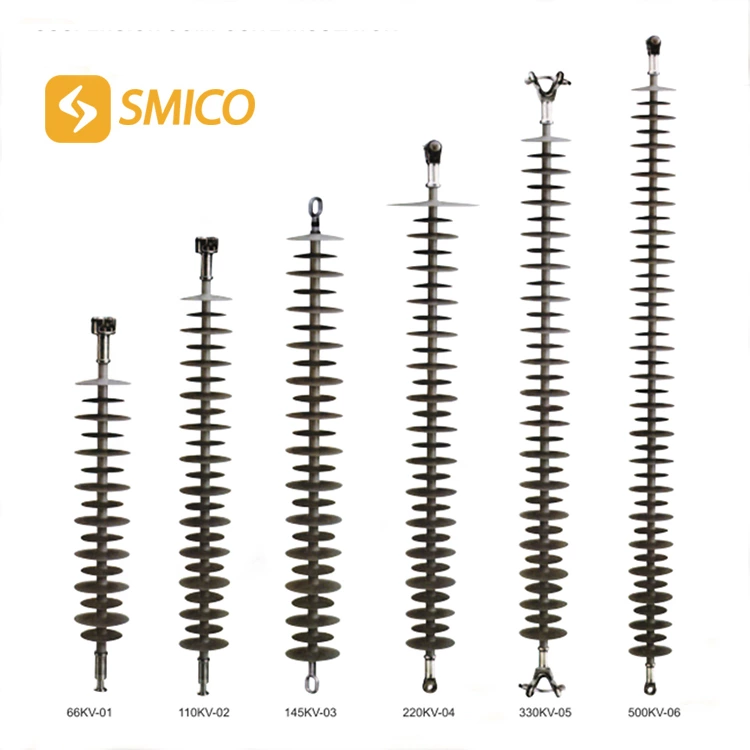

Insulator Polymer Insulator High Voltage Polymer Suspension Insulator

Type

Rated voltage(KV)

Specified mechanical load

Section length(mm)

Min Arc distance(mm)

Leakage distance(mm)

Lightning impulse withstand BIL(KV0

Power frequency withstand(wet)(KV)

FXBW4-12/70

12

70

350

180

400

95

45

FXBW4-24/70

24

70

550

370

850

185

95

FXBW4-24/100

24

100

570

370

850

185

95

FXBW4-35/70

36

70

650

450

1000

230

105

FXBW4-35/100

36

100

670

450

1000

230

105

FXYW4-12/70

12

70

350

180

400

95

45

FXYW4-24/70

24

70

550

370

850

185

95

FXYW4-24/100

24

100

570

370

850

185

95

FXYW4-35/70

36

70

650

450

1000

230

105

FXYW4-35/100

36

100

670

450

1000

230

105

FPBW4-66/70

66

70

900

710

1980

410

185

FPBW4-66/100

66

100

940

710

1980

410

185

FPBW4-110/100

110

100

1240

1000

3315

550

230

FPBW4-145/120

145

120

1480

1240

4123

725

355

FPBW4-220/100

220

100

2240

1900

6300

1000

395

FPBW4-220/160

220

160

2240

1900

6300

1000

395

FPBW4-330/100

330

100

2990

2600

9075

1425

570

FPBW4-330/160

330

160

2990

2600

9075

1425

570

FPBW4-500/160

500

160

4080

3730

12750

2250

740
