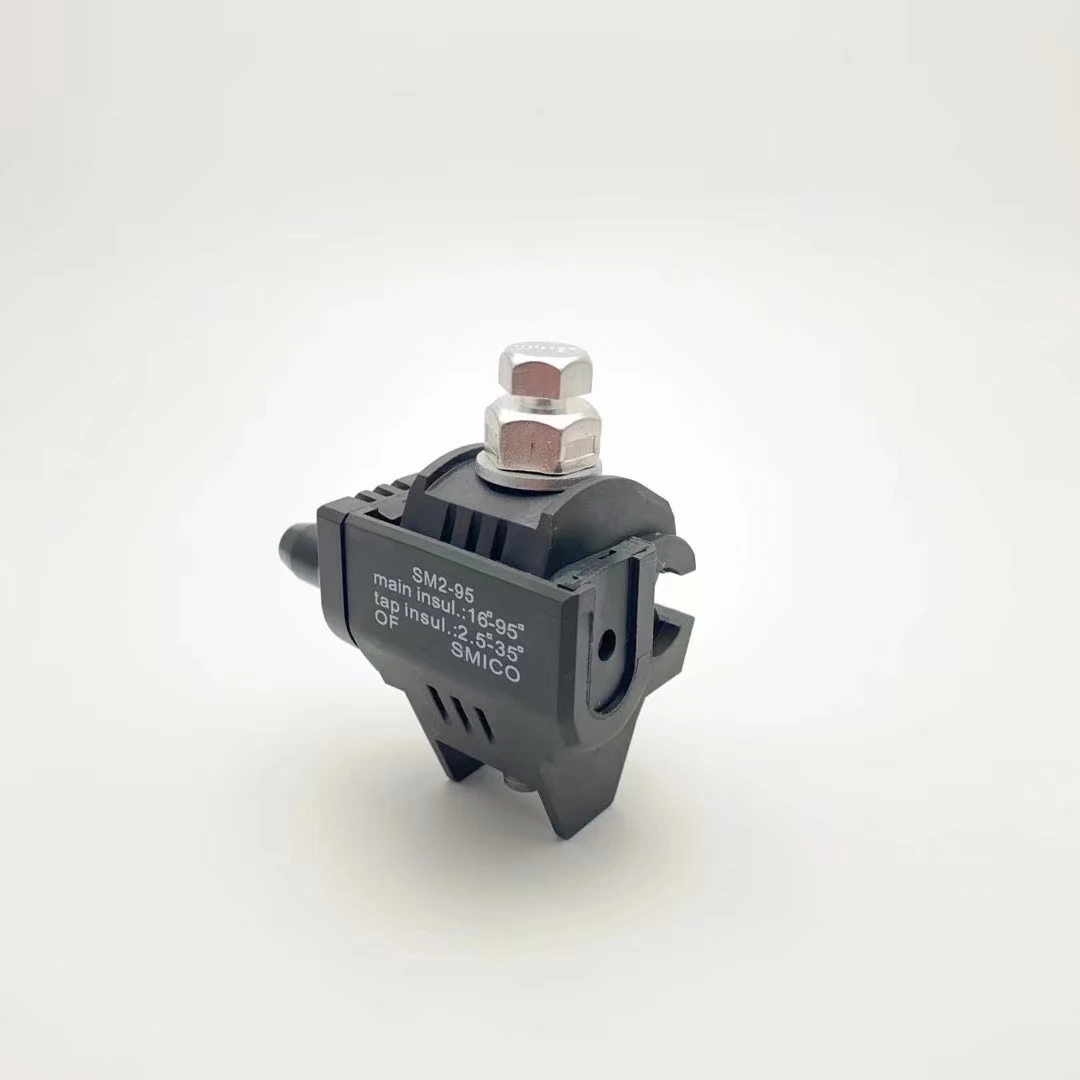

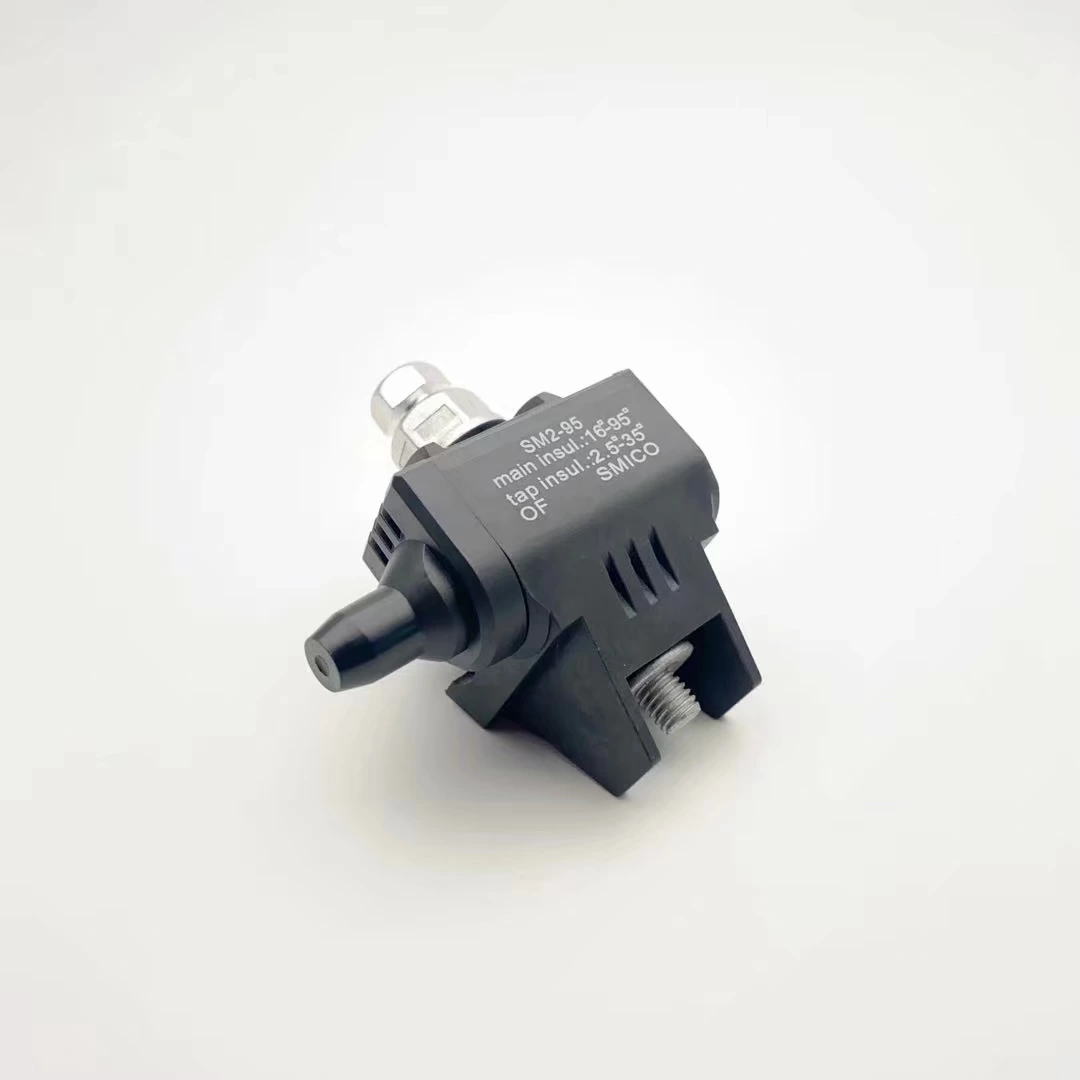

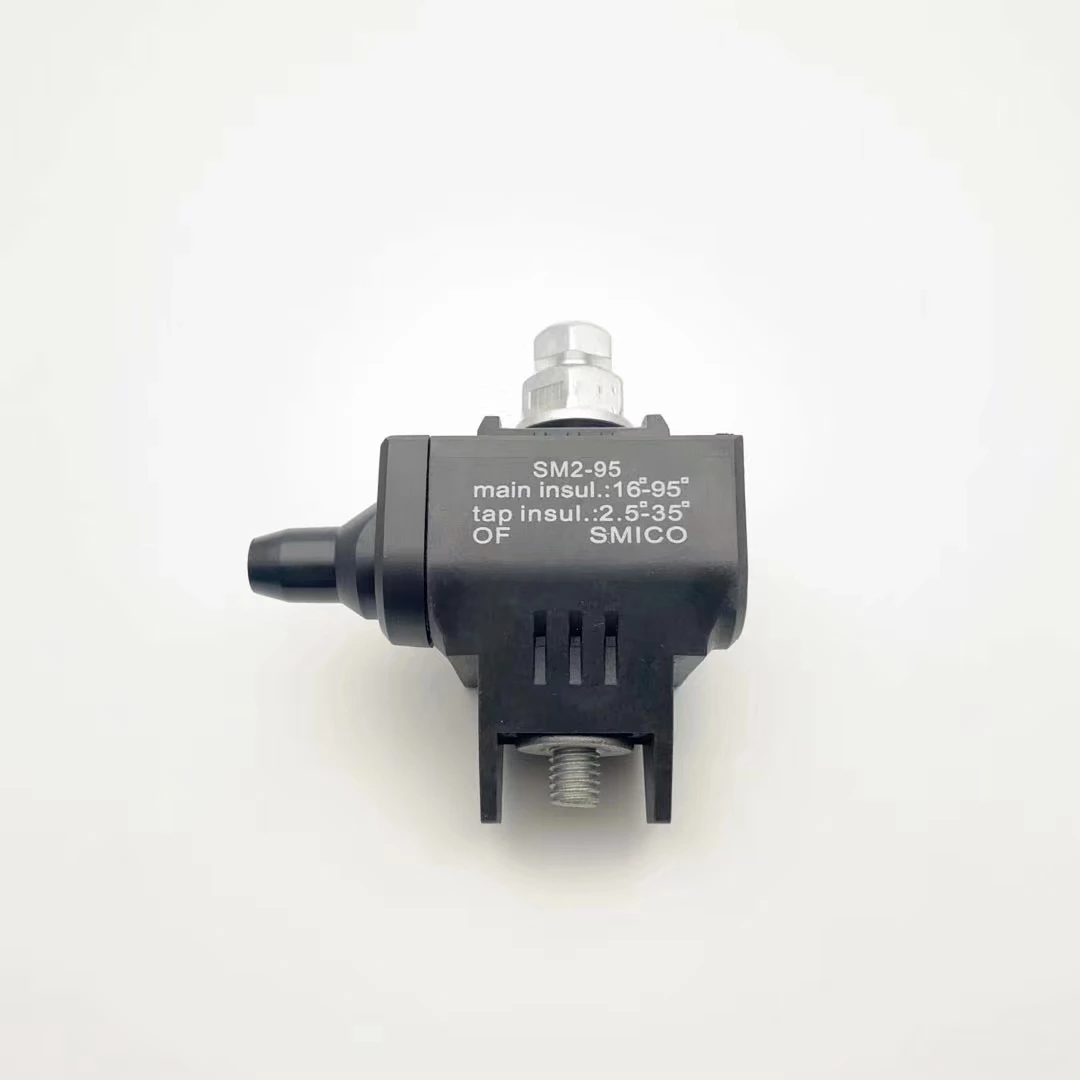

Service insulation piercing connector MICHAUD

Service insulation piercing connector MICHAUD

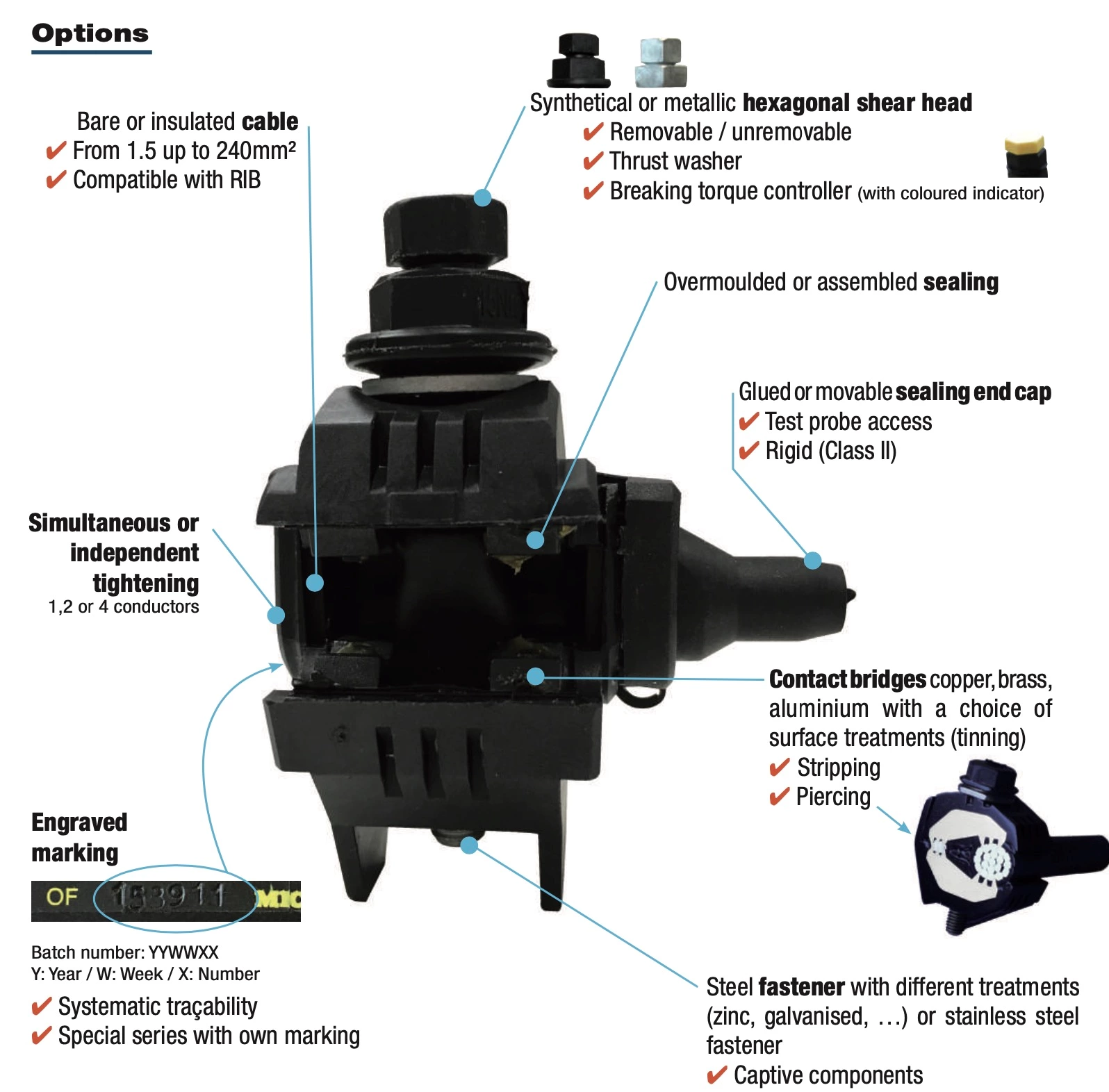

Connector general features:

- Insulation piercing is carried out on the main and tap conductors simultaneously in a single tightening operation.

• -  The dielectric strength in water is greater than 6kV.

• -  The tightening screw is potential free.

• -  Tightening efficiency is ensured by a shear head screw.

• -  ConnectorsK441,K442andK443arefittedwithayellowshearheadindicatorthatdisappearswhenheadissheared- off, being a clear visual confirmation of good tightening from ground level. It increases head height by 10 mm.

  This connector meets the criteria of the NF C 33-020 and EN 50-483 standards.

  Connector end cap:

  - The connector end cap is flexible so that to feel good tap conductor insertion simply by hand.

• -  It is carrying membranes instead of grease, granting watertightness around tap conductor end on long term basis.

• -  It is glued on connector body so that to avoid eventual loss during handling, installation and environment (wind, bad

  weather...).

• -  It can be equipped with a hard end cap, gripping and covering so, in case rigid cover is required.
