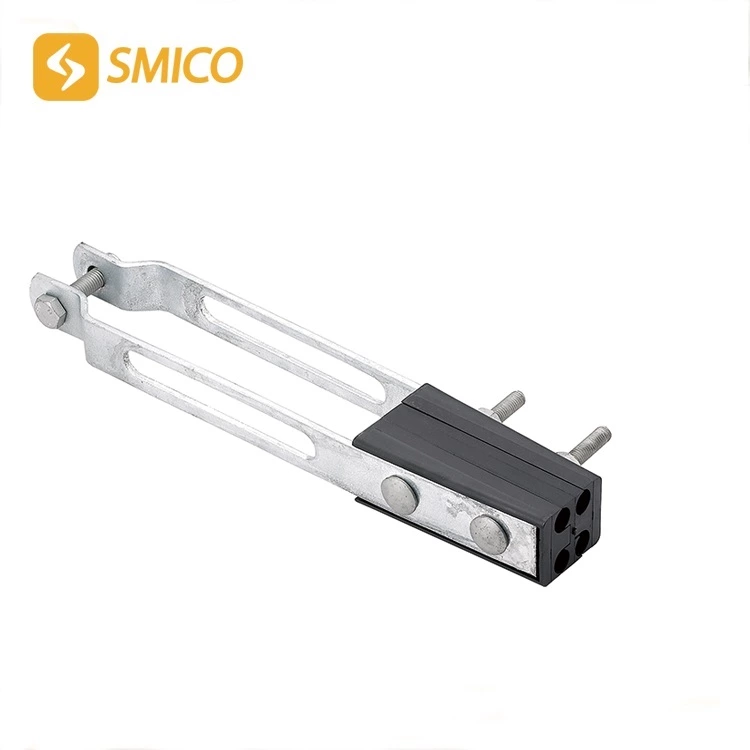

NES-B2 4 core anchor clamp

Dimensions

Code

NES-B1

NES-B2

NES-B3

NES-B4

Weight

Cable Size

4*(16-35)mm²

4*(50-120)mm²

4*(25-120)mm²

4*(95-150)mm²

Breaking Load

Specification

Use

For dead-ending of cables with round shape.

Installation

Open the clamp and insert conductors between the wedges. Springs keep the clamp in an open position during the installation. Nuts must be tightened up uniformly until proper torque is reached. After reaching a proper torque re tightening is not allowed.

Standard
