AU Wire Connecting Tubular Cable Lug Power Cable Lug

Code:AU Cable Size: Description:

Contact Now

AU Wire Connecting Tubular Cable Lug Power Cable Lug

Product Description

AU Wire Connecting Tubular Cable Lug Power Cable Lug

Material: A1-99.5%
Surface treatment: Tin-plated mini 15 microns
Product Property: It is in accordance with Din 46329 with markings for correct crimping. And its barrel capped is filled with joint comp ound to acoid oxidization. And its type test is follow IEC 61238-1.

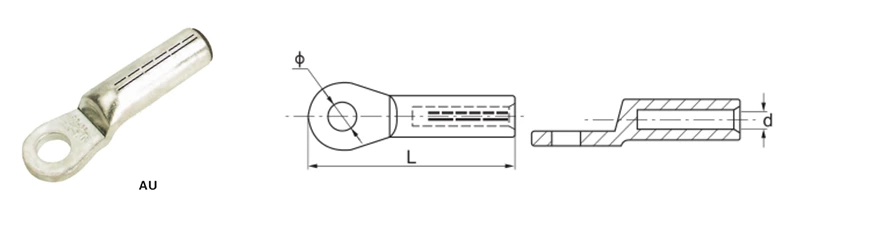

Type	Dimensions(mm)
Type	L	d	Φ
AU 16-8	60	5.8	8.4
AU 25-8	61.5	6.8	8.4
AU 25-10	61.5	6.8	10.5
AU 35-10	77	8	10.5
AU 50-10	77	9.8	10.5
AU 50-12	77	9.8	13
AU 70-10	84.5	11.2	10.5
AU 95-12	88	13.2	13
AU 120-12	95	14.7	13
AU 150-12	105	16.3	13
AU 150-16	105	16.3	17
AU 185-12	106	18.3	13
AU 185-16	106	18.3	17
AU 240-12	122	21	13
AU 240-16	122	21	17
AU 300-16	123	23.3	17
